Aluminum Bracket One Ear 1 1/4" Panel, 3" H X 2-3/4" L
Description

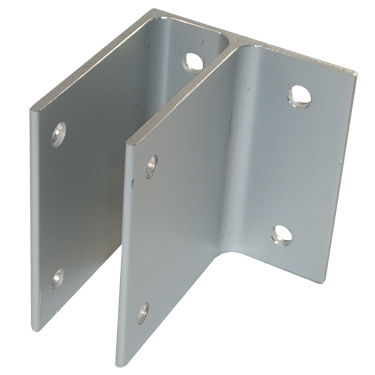

Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum
Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2294 and 650-1851. This bracket ships with all the needed fasteners.Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum
Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2294 and 650-1851. This bracket ships with all the needed fasteners.| Part # | 9A2294 |
|---|---|
| Availability | In Stock |
| Manufacturer | Generic |
| Description | Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2294 and 650-1851. This bracket ships with all the needed fasteners. |
| Detailed Description | Toilet Partition Wall Bracket One Ear For 1-1/4" Panel Aluminum Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2294 and 650-1851. This bracket ships with all the needed fasteners. |
