Metpar
Have you noticed a Knickerbocker stamp on the restroom partitions in the public bathrooms that you manage? With Knickerbocker being a widely known bathroom stall brand, it shouldn’t come as a shock if you eventually work with Knickerbocker stalls during the span of your restroom maintenance career.
Replace old Knickerbocker hardware on your stalls as soon as you notice any damage. You can buy Knickerbocker bathroom hardware on our website and we will have it shipped to you.
By shopping on our site, you will have the benefit of buying reasonably priced Knickerbocker hardware that you don’t have to shop for in stores. Put in an order for Knickerbocker restroom hardware today so that you will be one step closer to fixing up your bathroom stalls.
Knickerbocker Hardware Manufacturer
Knickerbocker Partition Corporation is a highly recognized manufacturer of partitions and stall parts. The company was founded almost 70 years ago. Although the company is headquartered in New York, it also has other locations across the U.S.
Our company Robert Brooke & Associates has the privilege of being a distributor of Knickerbocker toilet partition hardware. We sell Knickerbocker partition hardware for bathroom stalls on our own company website, RobertBrooke.com.
Shop Knickerbocker Partition Hardware
Knickerbocker manufactures a variety of Knickerbocker parts for stalls that we do our best to always keep in stock. From the Knickerbocker Concealed Latch to the Knickerbocker Cast Stainless Steel Keeper Bumper, we have an array of Knickerbocker partition hardware you could use on your bathroom stalls.
Our selection of Knickerbocker hardware includes three types of Knickerbocker cams. Each of the Knickerbocker cams is a bottom cam unit.
We sell the black nylon plastic Knickerbocker cam that comes with a pintle cylinder in a set. The set includes the lock washer and nut that are used to install it.
The other black cam we have in our Knickerbocker partition hardware supply is the Knickerbocker Bottom Cam. These Knickerbocker hardware can be used on metal bathroom partitions.
We also sell a Knickerbocker Bottom Cam in white. Unlike the black cams, the white ones can be used on plastic laminate bathroom stalls. You will want to figure out exactly how your Knickerbocker partition hardware should be used before you commit to a purchase.
We sell a lot more Knickerbocker hardware than just cams. That’s where our Specialized Search Engine might come in handy.
If you would like to locate specific Knickerbocker bathroom hardware for partitions, enter your search query into our Search Bar at the top of the webpage. Key in the proper keywords so that the correct Knickerbocker restroom hardware will pop up on the page. We hope that you are able to find the Knickerbocker partition parts that you are looking for.
Customer Support for Knickerbocker Partition Hardware
Information about shipping, product details and payment method is printed on our site. If you still have questions on Knickerbocker hardware for bathroom stalls, please contact us via phone or email.
The crew at RBA would like to keep your search for Knickerbocker partition parts uncomplicated. Allow us to guide you along for a straightforward ordering process of Knickerbocker partition hardware.
-
Metpar Slide Bolt Latch
Metpar Partitions Slide Bolt Latch with indicator Chrome plated Zamac die cast construction. The latch housing face plates measure 1-3/4" wide by 1-1/4" high. The latch thickness is 1-1/16". The latch bolt measures 3/4" by 3/16" with a 15/32" throw. Also known as a Metpar Bathroom Stall Concealed Latch. Manufacturer part # 4240, 13882. Metpar Toilet Partitions is the only manufacture that we know of that uses this latch.
9OC400 -
Metpar Keeper Bumper Concealed
Metpar Partitions Keeper Bumper 1-1/4" Round Edge Post
Polished chrome plate Zamac die casting construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-1/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/32" deep. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5520.
Shipped with mounting screws.
9OC410 -
Metpar Ada Lever Latch Knob Cover
Metpar concealed Ada lever latch knob with cover. Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a bathroom stall concealed ADA lever latch cover and knob assembly or a barrier free concealed latch knob, Cover and pin. Manufacture part # 6080.
9OC500A -
Metpar Latch Knob Cover
Metpar Partitions Concealed Latch Knob And Cover
Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". Cover lugs project out 1-7/32" . The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5090
9OC300 -
Metpar Top Hinge Pin For Laminate
Metpar Partitions Top Hinge Pin Laminate Hinge Pin 3/8" Diameter x 3-7/16" Long
Knurled steel construction. Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.
9CP450 -
Top Hinge Door Escutcheon For 7/8 Thick Door
Partition Top Hinge Door Escutcheon For 7/8" Thick Door
Chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.
9CP425 -
Metpar Top Hinge 1-1/4 Sq Edge
Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.
Shipped with mounting screws.
A=1-9/16"
9CP400 -
Metpar Nylon Cam
Metpar Partitions Nylon Cam
White nylon construction. The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.
9CP375 -
Metpar Bottom Door Insert For 7/8" Door
Metpar Partitions Bottom Door Insert For 7/8" Door
Chrome plated Zamac die cast construction. The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.
9CP325. -
Metpar Bottom Hinge 1-1/4 Sq Edge
Metpar Bottom Hinge 1-1/4" Square Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.
Shipped with mounting screws.
A=1-9/16"
9CP300 -
Metpar Keeper Bumper Inswing
Metpar Toilet Partitions Keeper Bumper For 1-1/4" Inswing Square Edge Pilaster Or Post
Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110
Shipped with mounting screws.
9CP250 -
Metpar Keeper Bumper
Metpar Partitions Keeper Bumper For 1-1/4" Outswing Square Edge Pilaster Or Post
Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210
Shipped with mounting screws.
9CP200 -
Metpar Slide Bolt Latch 9/16" Bar To Door Clearance
Metpar Slide Bolt Latch 9/16" Bar To Door Clearance Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020. Shipped with mounting screws.9CP100 -
Top Hinge Casting Unplated
Partition Top Hinge Casting
Unplated Zamac die cast construction. The outside dimensions of the top hinge casting are 3-7/16" high by 2-3/8" wide by 1-5/32" deep. The casting features four holes, two of them are 3/8" diameter, one is 7/32" diameter and the fourth is a threaded hole for a 5/16-18 screw. The two U channels have spacings of 13/16" and 1" on the other. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4546. Used with AMPCO and Metpar Toilet Partitions.
9C3513 -
Metpar Partitions Top Pin 3/8" x 3-1/4"
Metpar Partitions Top Pin 3/8" Diameter By 3-1/4" Long For Laminate Partitions
Threaded steel construction. The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.
9C3504 -
Top Hinge 1-1/4" Round Edge
Top Partition Hinge For 1-1/4" Round Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.
Shipped with mounting screws.
A=1-7/16"
9C3503 -
Metpar Pintle
Metpar Partitions Pintle 5/8" Diameter For Steel Doors
Steel and white nylon construction. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.
Shipped with nut and lock washer.
9C3006 -
Bottom Hinge For 1-1/4 Round Edge
Bottom Partition Hinge For 1-1/4" Round Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathrrom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.
Shipped with mounting screws.
A=1-7/16"
9C3004 -
Metpar Nylon Cam For Steel
Metpar Partitions Nylon Cam For Steel
White nylon plastic construction. Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall heigth of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185
9C3002 -
Metpar Nylon Cam Pintle Combo
Metpar Partitions Nylon Cam Pintle Combo
Black nylon plastic construction. The Metpar Toilet Partiton Nylon Cam measures 7/8" diameter on the cylindrical part and 4-7/8" long to the end of the screw. This part is also known as the Metpar Bathroom Stall Candle Cam. Metpar is the only manufacture we know that uses this type of Nylon Cam Pintle Combination piece. Manufacture part # 97435.
Shipped with lock washer and screw.
9C0235 -
Metpar Bottom Cam Housing Unplated
Metpar Partitions Bottom Cam Housing Unplated
Unplated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066
9C0140 -
Slide Bolt Latch SS
Toilet Partition Slide Bolt Latch Stainless Steel
Cast stainless steel construction. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.
Shipped with mounting screws.
also known as 9F0302SS
9A5023 -

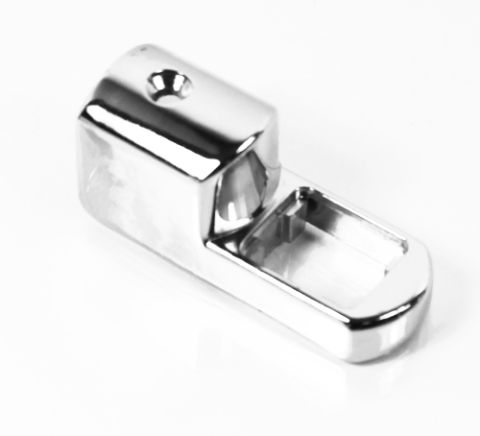

Metpar Bottom Cam Housing Chrome Plated
Metpar Partitions Bottom Cam Housing Chrome Plated
Chrome plated Zamac die cast construction. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060 Used with General, Metpar and Ampco
91005BC
