Grab Bars
Offering Commercial Restroom ADA Grab Bars are designed to give assistance to the elderly and handicap users. They are usually mounted on the walls or toilet partition panels. All ADA Grab Bars have an 1-1/2” offset clearance, and will support loads in excess of 900 lbs when properly installed. Fabricated of high quality 18 gauge stainless steel with a #4 brushed satin finish. Available in 1-1/4" or 1-1/2” outside diameter dimensions. All bends are formed by an automatic mandrel bending process. Most garb bars ship in two business days.
Grab bars provide additional support when using a restroom. The function of grab bars is to give the restroom user additional support when getting onto and off of a toilet. This bar allows the user to pull, lift or maneuver them self when visiting the restroom. Restroom dimensions vary so there are a number of designs to help meet customers’ needs. The most common design is a straight bar with 2 anchoring contact points. There are also another variant to this design where there is a center post for additional support. Other varieties offer angles for corners, floor mount and wall mount, as well as some that are on a pivot that can swing away when not needed. Grab bar s are utilized in wet, dry, and areas with heavy traffic as they are very durable and versatile.
There are a number of options and features available when looking at grab bars. A base line for grab bars is that they are constructed of 18 gauge Stainless Steel in an #4 Satin finish. For stalls that need to be in compliance with ADA regulations, a 42” Grab bar for the side wall and a 36” for the back are the minimum sizes allowed. These are also the most commonly used in restrooms but sizes that we offer are 16, 18, 24, 32, 36, 42, 48 and 52. Concealed Snap Flanges are the most common installation for grab bars as this hided the hardware when installing. We offer three mounting options: Concealed Snap Flange, Set Screw Concealed Flange and Exposed Mounting. Other options include diameter size and a textured finish. Diameter sizes offered are 1.5” (most common) and 1.25” (less common). A textured finish (Peened) is often used in wet areas so there is additional grip for safety and smooth (Non-Peened) are often used in most restroom applications. To help with ADA Regulations, we have attached pictorials guidelines below for installation.

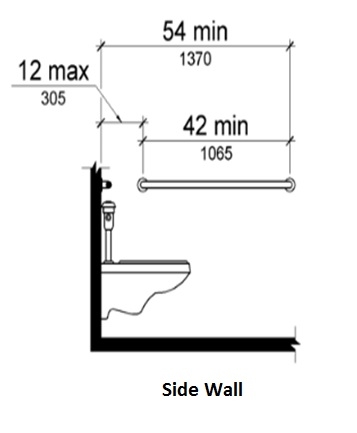

Side Wall
- Grab bar must be 42” length Minimum
- Located 12” Maximum from Rear Wall
- Must extend 54” Minimum from Rear Wall
- Must be 33”-36” above Finished Floor

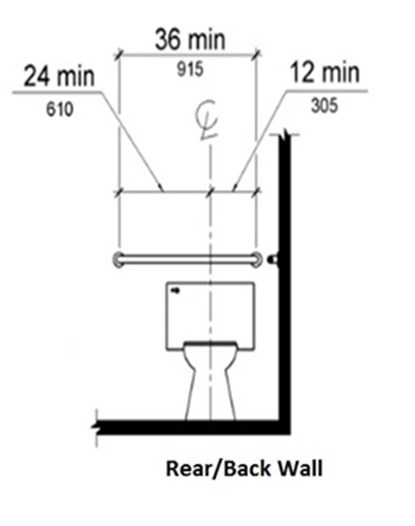

Back/Rear Wall
- Grab bar must be 36” length Minimum
- Must extend from centerline of toilet, 12” min. on one side and 24” min. on the other
- If wall can’t accommodate/permit for 36” bar, a 24” wide min. centered on toilet may be used.
Since 1970, we’ve been helping our customers ensure that their public bathrooms are accessible to all people. With more than 40 years of experience, we have the knowledge and experience to help supply your public bathroom with the right parts and accessories. ADA Grab bars are essential for ensuring handicap accessibility for your bathroom. Our wide range of grab bars come in several shapes and sizes, so you’re sure to find one that fits in your bathroom stalls. Please contact us with any questions you might have.
RBA Partitions and Parts Catalog
-
ADA Grab bars
The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish. They are available in 1 1/4” and 1-1/2” outside diameter. All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface. The mounting flanges have a 3” diameter. We offer two types of mounting, exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds. The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes. The overall length of a 12" grab bar is 15" due to the 3" diameter flanges. Due to the various materials that these are mounted on, screws are not included.
K74 -
Toilet Grab Bar Wall Mounted
Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.
2234 -
Swing Up Grab Bar
Swing Up Grab Bar (1-1/4" O.D) - Smooth - With Detent Stops at 0°, 45° and 90° Positions.Features include flange of 3″ diameter, 1/8″ thick type 304 stainless steel with a satin finish; exposed mounting screw holes are drilled and countersunk. Swing Up Grab Bar Locks firmly into place when lifted into an upright position. 1-1/4" OD. Projects 30" from wall. When properly mounted, swing-up type bar will sustain a static load of 250 lbs. Known as 10-3414.
3410 -
48" Grab Bar Center Post
Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.
K7417C -
Grab Bar L 54" x 42"
Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.
7457
