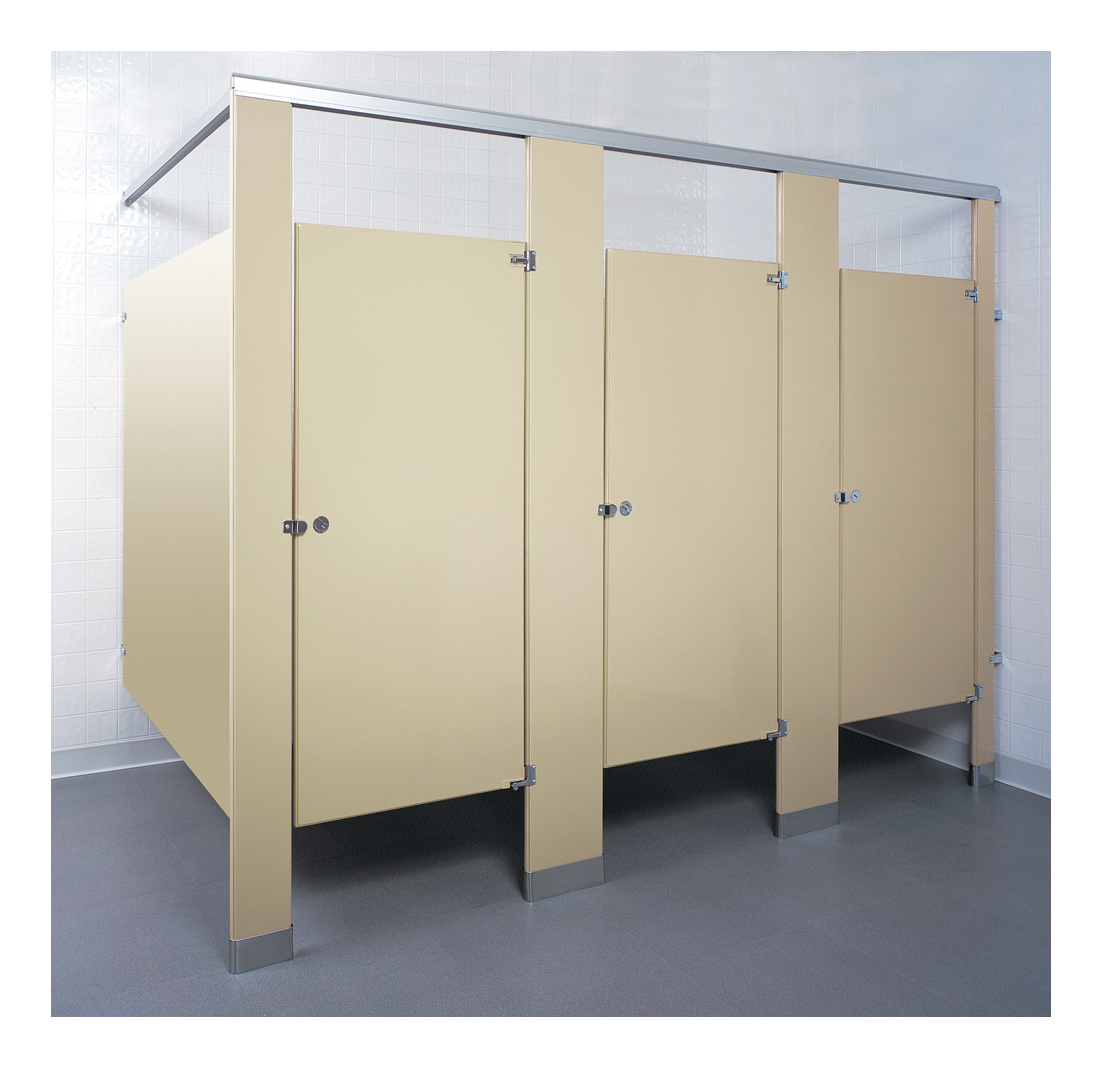

Powder Coated Toilet Partitions
Robert Brooke & Associates has been a trusted name in the commercial hardware business for over 48 years. We offer a wide variety of commercial restroom partitions trusted by businesses, schools, churches, warehouses, and more. Our powder coated metal partitions are a very durable and affordable option for your commercial restroom. The quality powder coated finish comes in a variety of colors and is resistant to wear, staining, fading, and scuffing. Choose a dependable product from a name you can trust, Robert Brooke & Associates.
Powder coated steel bathroom partitions utilize the latest powder coating technology to provide a hard, but even and run-free finish. After a thorough cleaning and phosphate conversion process, electrical charges ensure that the powder paint adheres uniformly over the entire product surface. The powder is then oven baked to create an attractive, permanent and perfect finish that covers every area of the product and resists impact, abrasions, chemicals, detergents and acids.
Powder coating allows a greater paint thickness to be applied without compromising surface uniformity. The flexibility of powder coating allows partition manufacturers to offer a wide range of finishes and effects.
This product is the least inexpensive on the market and is often used with schools, churches, commercial businesses, and office buildings.
We do not recommend powder coated steel to be used in moisture areas or shower areas, as this product will rust over time.
Most partition manufacturers provide a warranty of 2-5 years, however, the toilet partitions will last up to 35 years if properly maintained.
Some of the top bathroom partiton manufactures include Hadrian Manufacturing Corporation, Global Partitions Corporation, All American Partitions, American Sanitary Partitions and Accurate Partitions Corporation. All some manufacturers offer quick shipping times for fast deliveries to our customers within USA.
The most common configuration for powder coated toilet partitions is an overhead braced floor mounted unit. Adding an anti grip top rail extruded aluminum offers maximum strength, rigidity, and a clean line appearance. All components are tack welded and interlocked under tension with a roll-formed oval crown-locking bar for continuous bonding and a permanent, hygienic seal. Door kits have many options from traditional wrap around, full length piano hinges and a concealed type that is a sleek design eliminates the need for exposed fasteners on the door face. The latching for the doors is a standard turn latch mechanism that has access from the outside of the door for ADA emergency. All brackets and door hardware components are zinc die-cast and plated with nickel and chrome to a gleaming finish. Pilaster shoes are a one-piece welded design of polished stainless steel.
Powder coated toilet partitions can also be ceiling hung braced which presents a clean, contemporary appearance. They permit quick, easy floor maintenance, especially when combined with wall-hung fixtures. Ceiling hung partitions are recommended for modernization where a drop ceiling or open span construction can be used.
Floor mounted units lend an air of spaciousness to these installations. The absence of top structure makes them the ideal choice for high ceiling areas and allows a wide range of complimentary architectural and interior decoration possibilities.
Floor to ceiling units are extremely strong and resistant to abuse as they are securely connected to the floor, ceiling and walls. This configuration is ideal for high abuse areas and installations that require extra durability.
In all of the different options for bracing the only thing that changes are the pilasters that go on either side of the doors. The partition doors hinge off and close onto a pilaster. Overhead braced is what the factory’s stock for quick shipping.
All bathroom partition manufacturers now offer a no sightline solution for maximizing privacy. In addition, most manufactures use a full height, continuous stop and hinge side filler to completely eliminates all sightline gaps around the door. A full length rubber bumper on the stop deadens sound and protects against wear. The versatility of the no sightline solution means it can be used in new and pre existing installations. Continuous stainless steel channels for all the panels and pilasters to create even more privacy.
-
Hadrian Between Wall Stalls in Steel
Hadrian Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.
PCSBWH -
Hadrian Corner Stalls in Steel
Hadrian Corner Bathroom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.
PCSICH -
Hadrian Metal Alcove Stalls
Hadrian toilet Partition Metal Alcove Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Hadrian Partition Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. Quick ship toilet partitions ship in 48-72 hours plus 2-3 day travel. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.
PCSALCOVEH -
Hadrian Free Standing Stalls in Steel
Hadrian Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.
PCSFSH -
Powder Coated Metal in a Corner Partitions
Global Partition compartments In A Corner Stall. Powder Coated Metal Overhead braced floor mounted stalls is most used. Standard stalls 36"x 60" depth (26" door), ADA stall 60"x60"depth (ADA 36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integrated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color ChartPCSIC -
Powder Coated Metal Free Standing Partitions
Global Partitions Free Standing Toilet Stalls in Powder Coated Metal Overhead braced floor mounted restroom stall. Standard stalls 36"x 60" depth (26" door), ADA stall 60"x60" depth (36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color ChartPCSFS -
Powder Coated Metal Between 2 Walls Partitions
Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (26" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color ChartPCSBW -
Powder Coated Metal Alcove Partitions
Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
Color ChartPCSALCOVE -
Accurate Partition Alcove Stalls in Steel
Accurate Commercial Partition Alcove Handicap Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Accurate Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
PCSALCOVEA -
Accurate Partition Corner Stalls in Steel
Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
PCSICA -
Accurate Partition Between Wall Stalls in Steel
Accurate Commercial Partitions Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x 60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
PCSBWA -
Accurate Partition Free Standing Stalls in Steel
Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 26" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
PCSFSA -
Alcove Channel #4 Brushed Aluminum
Toilet partition Alcove Channel for Powder Coated Steel or Stainless Steel partitions. Constructed of extruded aluminum with #4 brushed finish(similar to stainless steel). Typically used with new construction but can be used on existing partitions. Designed to join a Pilaster and Panel in-line to eliminate sightline gaps to provide additional privacy. The indented rounded curve is where the Pilaster(1-1/4" Thickness) will attach, while the open end of channel is where the panel(1" Thickness) with attach. Comes with screws for attaching to pilaster and panel. Alcove channel is not pre-drilled so you will have the flexibility to place screws where needed. Provides the ability to space the panel inside the alcove channel as close as 1/4" to about 3/4". The Alcove Channels are for Hadrian's Standard(58" Ht Panels), Elite(64" Ht Panels) and Elite Plus(72" Ht Panels) Series of restroom partitions. Could be used on different manufacturers partitions as well. Manufactuered by Hadrian Partitions, known as 560157-990, 560170-900 and 560172-900.
9A5601 -
ASI Headrail
ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).
Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.
Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.
9A84 -
Hadrian Wall Privacy Screen With Pedestal
Hadrian Wall Mounted Privacy Screen's with pedestal for extra strength. Powder coated are available in 58" heights by 18" or 24" wide. Standard chrome brackets with pedestal are included. Wall hung screens are great for between urinals or a sink and urinal. All colors ship out in 12 business days, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.
9SWHSHP -
Hadrian Wall Mounted Privacy Screen
Hadrian Wall Mounted Privacy Screen's in powder coated are available in 48" heights by 18" or 24" wide. Standard chrome brackets are included. Wall hung screens are great for between urinals or a sink and urinal. The colors that are marked with an astris or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.
9SWHSXXH -
Hadrian Steel Stall Doors
Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.
9TDSXXH -
Hadrian Steel Stall Panels
Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.
9TPSXXH -
Hadrian Steel Pilasters
Hadrian partition steel pilasters are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom pilasters come with a stainless steel shoe and floor hardware. Pilaster widths start out at 3"-23". The pilasters are 82" height with a u shape at the top for a head rail to fit into.
9TLSXXH -
Powder Coated Metal Doors
Ordering Online All Powder Coated Metal Stall Integrated Privacy Doors are Manufactured by Global Partitions. All toilet partition door's ship in 48-72 hours plus 2-4 days travel. Note 24",26",34" & 36 doors are quick ship, 20", 22", 28", 30" & 32" ship out in 1 week. Standard Chrome Plated hardware included. Chrome Plated ***New style slide latch door kit included.
9TDSXX -
Powder Coated Metal Panels
Ordering Online All Global Partitions in Powder Coated Panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All Hardware Chrome Plated included. Available in 16, 18, 22, 28, 34, 40, 46, 52, 55, 58, 60, 65, 70, 76". Actual width is 1/2" less. (58" Height)
Color Chart9TPSXX -
Powder Coated Metal Pilasters
Ordering Online All Powder Coated Metal Pilasters Manufactured by Global Toilet Partitions. All toilet partition pilaster's ship in 48-72 hours plus 2-4 days travel. Includes Floor mount hardware and Stainless Steel Shoes Available for the following widths - 2, 3, 4, 5, 6, 7, 8, 10, 12, 16, 18, 20, 22 and 24". All Pilaster height's are 84".
Color Chart9TLSXX -
Hadrian Floor Mounted Privacy Screens
Hadrian Floor Mounted Privacy Screens in powder coated are available in 58" heights and starting out with 14" widths through 58" width panels, includes 5" x 69" pilaster in matching color. Standard chrome brackets are included. Floor braced panel dividers are great for between urinals, a sink and urinal or extra privacy at the entrance doors. The colors that are marked with an asterisk or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.
9SFASXXH -
Powder Coated Metal Wall Hung Urinal Screens
Ordering Online All Powder Coated Metal Wall Hung Urinal Screens Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall Hung 1" thick by 48" high panel. Available in the following widths 12, 18, 24" x 48" ht screen. Two Standard Chrome Plated Brackets included.
Color Chart9SWHSXX -
Accurate Partition Steel Doors
Accurate Toilet Stall Doors are easy to reinstall when replacing. All doors come with standard chrome door kit, with upgrades to stainless steel hardware. Accurate offers 20"-36" doors in even numbers only. All sizes are for the opening that you have. The doors are 3/8" narrower than the opening. Accurates door height for powder coated steel are 58" ht mounted 12" off the floor. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.
9TDSXXA -
Accurate Partition Steel Panels
Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.
9TPSXXA -
Accurate Partition Steel Pilaster
Accurate Pilasters in steel are floor mounted and head rail braced. The pilasters are 1-1/4" thick by 84" height. The available widths are from 2"-24". All pilasters come with ss shoes and floor hardware. These ship in 48-72 hours from the factory and are a 2-4 day travel from lyons IL.
9TLSXXA -
Powder Coated Metal 10' Post & Panel Urinal Screen
Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.
Color Chart9SFCSXX -
Powder Coated Metal Overhead Braced Floor Anchored Urinal Screen
Ordering online All Powder Coated Metal Overhead Braced Floor Anchored Dividers are Manufactured by Global Partitions, see color chart below. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Standard Chrome Plated brackets included. Panels are 58" high. and Pilasters are 84" high. Panel, Pilaster, headrail and all hardware included. Width of screen 16"-76" widths Color Chart
9SOBSXX -
Powder Coated Metal Floor Anchored Urinal Screen
Ordering Online All Powder Coated Metal Floor Anchored Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard chrome plated brackets included. Floor Anchored Urinal Screen 70" high pilaster and 58" high panel. Width of screen 16"-76"x 58"ht
Color Chart9SFASXX -
Accurate Partition Urinal Privacy for Steel
Accurate partitions urinal privacy wall mounted steel material are great for between two urinals, between a urinal and sink or a privacy for the entrance of the restroom. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall hung 1" thick by 42" , 48" and 58" high panel. Available in the following widths 18, 22, 24, 28 widths. Specify part # 9SWHS-XX (where XX is the screen width) x 42", 48", 58"ht screen. Two Standard Chrome Plated Brackets included.
9SWHSXXA -
Accurate Partition Urinal Privacy Floor Mounted
Accurate partition urinal privacy floor mounted for powder coated steel. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard chrome plated brackets included. Floor Anchored Urinal Screen with a 70" high pilaster and 58" high panel. Privacy are used between urinals, a urinal and a sink or extra privacy at the entrance of the restroom. The width of the privacy screens available are 16"-76"x 58"ht.
9SFASXXA
