Cast SS Slide Bolt Latch, Hole Spacing 1-3/4"X1-1/2"
Description

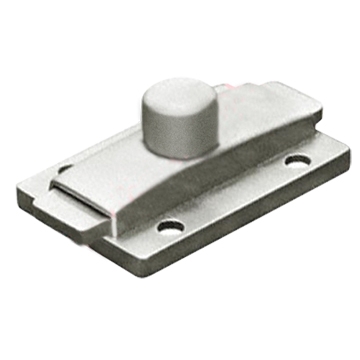

Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"
Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.
Shipped with mounting screws.
Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2"
Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.
Shipped with mounting screws.
| Part # | 9A6983 |
|---|---|
| Availability | In Stock |
| Manufacturer | Accurate Toilet Partition, Mills Toilet Partition |
| Description | Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2" Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983. Shipped with mounting screws.
|
| Detailed Description | Partition Slide Latch, Cast Stainless Steel With Hole Spacing 1-3/4" X 1-1/2" Cast stainless steel construction. The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983. Shipped with mounting screws.
|
