Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge
Description
Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge

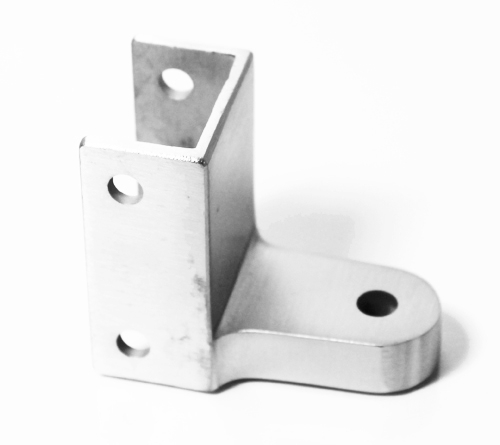

Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.
Shipped with mounting screws.
a=1-5/8"
This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.
Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge
Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.
Shipped with mounting screws.
a=1-5/8"
This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.
| Part # | 9A3293 |
|---|---|
| Availability | In Stock |
| Manufacturer | General Toilet Partition |
| Description | Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293. Shipped with mounting screws. a=1-5/8" This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions. |
| Detailed Description | Cast Stainless Steel Bottom Hinge for 1-1/4" Sq Edge Cast stainless steel construction. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293. Shipped with mounting screws. a=1-5/8" This is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions. |
