International

International Door Closer 8050

This closer is an ideal replacement closer for just about any Store Front Door. We recommend this closer because it will fit any size door, and you can adjust the spring tension to make it easier for the elderly, smaller children and the handicapped. This door closer will work on a Right or Left Hand Door, Push or Pull side or Top Jamb mounting, it ships with a parallel arm bracket, arm and mounting screws.

Length of Closer 9-3/4”, Horizontal Mounting Holes 9-1/16”, Vertical Mounting Holes 3/4”, Overall Height 4-21/32”, Height of Closer 1-21/32”, Projection from Door 2-29/32”, 4 Adjustments - Closing and Latching Speed, Power and Back Check.

We ship the 8051-TP DU or 8051-TP AL depending on the color you choose. This closer includes a full plastic cover

International Door Closer 8052 Delayed Action

Same closer as the 8050 Series or 8051P, but with Delayed Action. Delayed Action is a function of the Door Closer hydrualic cylinder. The hydrualic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-P DU or 8052-P AL

International Door Closer 851 Series

FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular and parallel arm bracket

3/4" x 6-3/8" mounting holes

International Door Closer 852 Series
FEATURES

Two Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Shipped with regular and parallel arm bracket.

3/4" x 7-3/8" mounting holes

International Door Closer 853 Series
FEATURES

Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves,

Universal application Non-handed for standard top jamb or parallel arm installation. Ships with regular arm and parallel arm bracket.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

International Door Closer 854 Series

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top
jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

International Door Closer 855 Series-Discontinued.   If you order this door closer the 885 will be sent, it is the same door closer but also features back check.

FEATURES
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating Valves, Universal application Non-handed for standard top jamb or parallel arm installation.

Ships with regular arm and parallel arm bracket.

3/4" x 9-1/16" mounting holes

International Door Closer 883 Series
FEATURES

Three Adjustment Valves: Closing and Latching
speeds controlled by separate regulating Valves,
and back check

Universal application Non-handed for standard top
jamb or parallel arm installation.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

International Door Closer 9001 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 1 through 6 (adjustable after installation)
3. Precision cast aluminum housing with forged steel arm
4. Stable hydraulic door check fluid for any climate operation. Using a fire resistant oil with an
operating range from -43.6°F (-42°C) to 140°F (60°C)
5. Standard sweep and latch speed
6. Standard adjustable backcheck or without backcheck
7. Two speed control valves allow closing and latching speeds to be controlled by separate
valves; fully adjustable after installation
8. Standard Tri-packed for regular arm, top jamb and parallel arm application
9. Numerous accessories are available to allow for special installations or adaptability
10. Finishes available in Aluminum (AL) and Duronodic (DU)

3/4" X 11-3/32" Hole Spacing

INTERNATIONAL DOOR CLOSER 1802 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1802BC

INTERNATIONAL DOOR CLOSER 1803 - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1803

INTERNATIONAL DOOR CLOSER 1804BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm, Top Jamb installation and Parallel arm installation.
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1804BC-P

INTERNATIONAL DOOR CLOSER 1805BC - FIXED SPRING CLOSER

• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Narrow design permits installation on most modern glass and aluminum doors without adapters
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Standard application for regular arm and Top Jamb installation; optional parallel arm installation (requires optional PA bracket.)
• Slim Plastic Cover or Full Cover (optional)
• Ranges of Sizes
  Back-Check: 1802, 1803, 1804, and 1805
• 5 year warranty
• All Weather Fluid

3/4" X 9-1/16" Hole Spacing

PLACE AN ORDER HERE FOR THE 1805BC

International Door Closer CI44 Series

1. Recommended for High Traffic doors
2. Rugged Cast Iron Body with forged steel arm
3. Double heat treated steel pinion
4. All weather fluid
5. Non-handed
6. Non-sized adjustable 1-6; standard with Backcheck

Direct replacement for the LCN 4040

International Door Closer 5000 Series

1. ADA (Handicap) multi-sized closer with adjustable spring power
2. Adjustable spring power 8 1/2 lbs to Size 5; Adjustable after installation
3. Rack and pinion mechanism is contained in a high tensile precision cast aluminum housing
4. Finishes available in Aluminum (AL), Hardware Bronze - Storefront Bronze (DU)

Ships with regular arm and parallel arm bracket

Hole spacing 3/4" x 12"

International Door Closer 520 Main Arm

International Door Closer part # 520

International Door Closer 522 Hold Open Arm

This is the New Style Hold Open Arm from International Door Closer. In July of 2014, the old style was discontinued. Look under "More Views" to see the Old Style. Shown in Dark Bronze, ships with all components in the picture.

International part # 522

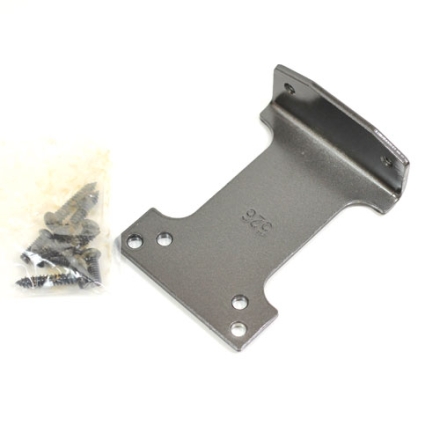

International Door Closer 525 PA Bracket

International Door Closer 200 Series Overhead Door Closer

UL Listed
Built in positive back stop and hold open positions.
Two speed control valves: Closing and latching speeds controlled by separate regulating valves, fully adjustable after installation.
Positive centering for alignment and to hold door closed against any normal wind or draft.
Stable hydraulic door check fluid for any climatic operation and constant lubrication.

Hydraulic Cylinder only

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

International Door Closer 300 Series Adjustable Power

UL Listed, Barrier Free Operation to Comply with Federal Accessibility Standards (ADA) ANSI A117.1.   Spring Power adjustable for a range of sizes from 8-1/2 lbs t Medium Spring Tension, fully adjustable after installation.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

International Door Closer 3010-JO Arm and Track

International Door Closer 3010-JO Arm and Track for Offset Top Arm Assembly Mortised Type (9/16" Depth of Top Rail). Track measures 15-1/4" long by 3/4" high by 15/16" wide.

International Door Closer 3010-K Arm

International Door Closer 3010-K Arm, K type end loading top arm assembly (5/8" depth top rail). All screws included with package.

International Door Closer 3010-PT Arm

International Door Closer 3010-PT Arm, PT type end loading top arm assembly (7/8" depth top rail). All screws included with package.

International Door Closer 3020-VO Arm and Track

International Door Closer 3020-VO Arm and Track for Offset Top Arm Assembly Mortised Type (7/8" Depth of Top Rail). Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

International Door Closer 3010-DP Bottom Pivot

Adjustable dual purpose bottom pivot set

International Part # 3010-DP

The International 8000 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

International 521 Forearm

Arm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521
