LCN

LCN Door Closer 1250 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 1600 and Yale 50 Series Door Closers.  It features, a cast aluminum cylinder, 15 year warranty, hole spacing 3/4” x 9-16”, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

The 4410HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

LCN Door Closer 1450 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 8000 and Yale 3000 Series Door Closers.  It features, a cast aluminum cylinder, 3/4” x 12” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Standard LCN 1460 series closer shipped with regular arm, a slim line plastic
cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left
swinging doors.

We ship the 1461 Rw/PA

The concealed 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Specifications

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Standard 3030 series closer shipped with regular arm and wood and
machine screw pack. Sized cylinders for interior doors to 4’0”.
Handed for right or left swinging doors.
Closers to meet ADA requirements.

We ship the 3031 REG

The LCN Sentronic Door Closer 3130SE is a concealed overhead door closer

Standard 3130SE series closer shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

LCN 4010 Fusible Link Door Closer

Standard 4010 series closer is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Fusible link melts at 120 degrees and allows the door to close. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

Standard 4020 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

LCN 4020 Fusible Link Door Closer

Standard 4020 series closer shipped with Fusible Link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

we ship the 4021 FL

Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left
swinging doors. Closer meets ADA requirements.

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws. Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors. Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

LCN 4040XP-CUSH Door Closer

The same 4040XP Door Closer with the CUSH (Non Hold Open Cush) arm or 3077CNS arm.

• • Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP-CUSH

LCN 4040XP Hold Open Door Closer

The same 4040XP Door Closer with the Hold Open Arm arm 4040XP-3049.

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Hw/PA

LCN 4040XP-HCUSH Door Closer

The same 4040XP Door Closer with the HCUSH (Hold Open Cush) arm 4040XP-3049CNS.

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP-HCUSH

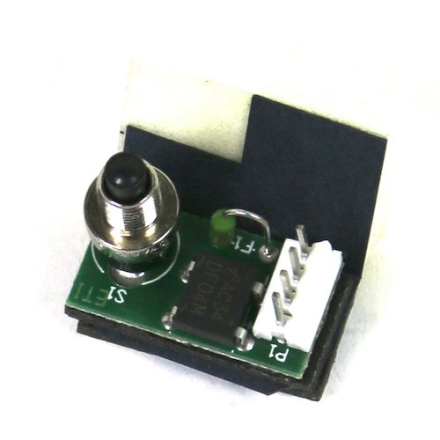

The 4040SE Sentronic® is a heavy duty, non-handed, nonsized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the
holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.

LCN 4040XP Door Closer

• Strongest Pinion Ever - At 3/4”, It’s The Super Hero Of Pinions
• Taller Bearings - 5/8”, Real Muscle Against Forced Openings And Closings
• An Overall 44% Increase In Maximum Load Capacity
• Tougher Teeth - Fight Wear And Tear
• V-Shield Seal With 20% Longer Life
• Better Wear Resistance From Sagging Doors And Warped Frames
• XP = eXtra Protection In Real-World Applications

We ship the 4041XP Rw/Pa (Regular Arm with Parellel Arm Bracket)

LCN Door Closer 4050 Rw/PA

This new LCN Door Closer is a direct replacement for the Norton 7500 and Yale 4400 Door Closers.  It features, a cast aluminum cylinder, 2-3/8” x 6-3/4” hole spacing, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Standard 4110 series closer shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 EDA

Handing diagram

LCN 4110 Fusible Link Door Closer

Standard 4110 series closer shipped with Fusible Link arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements.

We ship the 4111 FL

Standard 4110 series closer shipped with EXTRA DUTY HOLD OPEN arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The friction hold open arm allows for adjustable stop hold open positions up to 180 degrees.

We ship the 4111 HEDA

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

The 4310HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

LCN Sentronic Door Closer 4410ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 4410ME parts are also available.

LCN 4630 Low Energy Door Closer

LCN 4640 Low Energy Door Closer

LCN 8310-3822TW Actuator Package

This package is recommended for interior use only!   Actuator package, 1-1/2" x 4-3/4", includes:
2 8310-818T Wireless Jamb Mount Actuator
2 8310-819S Surface Mount Boxes
2 8310-844J Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3822TW

LCN 8310-3860TW Actuator Package

Wireless  Actuator package, 4-1/2" Round, includes:
2 8310-856T Wireless Wall Mount Actuator
2 8310-868S Surface Mount Boxes
2 8310-800  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3860TW

LCN 8310-3857TW Actuator Package

Actuator package, 4-3/4" Square, includes:
2 8310-853T Wireless Wall Mount Actuator
2 8310-867S Surface Mount Boxes
2 8310-801  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3857TW

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

Replacement springs for the older Pot Type Closers. You should find a number stamped on the end plug, which should relate to the "Size" below.

Actuator 4-1/2" diameter, with blue engraved lettering with text.
