Norton Door Closers

Norton 7500 Apollo Door Closer

• Rack-and-pinion design
• Cast aluminum body
• 2-1/8" (54mm) projection
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Backcheck positioning valve
• NorGlide® fluid
• Molded plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Self-drilling screws
• Full-size template
• 10-year limited warranty

We ship Norton 7501 which will work as a replacement for the 7501BF. This closer now meets ADA Handicap codes for Barrier Free Access.

Norton 8501 Door Closer, also known as the Norton 8501 Omni Door Closer, or 8501BF Door Closer.
We sometimes find 3301/3501 and 8301/8501 on the inside of the cover, along with the suffix BF (barrier free).

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This Norton 8501 replaces the 8501BF. This newer model now meets the ADA Barrier Free requirements.

Norton 8301 Door Closer, Sometimes called the Norton 8301 Omni Door Closer

• Adjustable spring sizes 1 thru 6
• Rack-and-pinion design
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Cast aluminum body
• Standard, separate and independent, latch,
  sweep and backcheck intensity valves
• Staked valves
• Molded plastic cover standard

This closer replaces the 8301BF Norton Door Closer. The standard 8301 now meets the Barrier Free Requirements.

Norton 1600 Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Norton 1600BF Barrier Free Door Closer

• ANSI A156.4, Grade 1
• 10-year warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body
• Standard, separate and independent, latch, sweep
  and backcheck intensity valves
• 2-7/8" (73mm) projection
• Tri-Packed- packed for regular arm, top jamb and
  parallel arm installations.

3/4" x 9-1/16" hole spacing

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.
We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

We ship the 1601 Norton Door Closer, which is a non size (meaning you can adjust the spring tension), which will work in place of the 1603BC, 1604BC, 1605BC and 1606BC.

Norton Door Closer 9300

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• Friction hold open arm optional
• UL listed and compliant with UL10C for positive pressure
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" Hole Spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Norton 7700 Series Power Track

The Norton Power Track Closer-Holders combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series Door Closer. The track assembly contains an arm slide and solenoid operated hold open mechanism and is available with or without an integral smoke detector. The closer is mounted on the door. The Power Track and hook-up box are mounted to the frame face for pull side installations or the frame soffit for push side installations.

Two versions, the Master Unit (PTDO) and the Support Unit (PTO). The PTDO has an integral smoke detector. The PTO can be plugged into the PTDO or into your existing fire alarm system. Both units can be mount pull side of the closed door, or the push side, please specify when ordering. Specify voltage (24 volt or 120 volt) and color (aluminum or dark brown). Dark Brown is a 3 week lead time, Aluminum is in stock.

Supply Chains have really caused some issues on this door closer, we recommend calling or emailing to check the availability of this door closer.

The NortonSeries 78-B/F Traditional Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

Norton / Yale Door Closer Regular Arm

Replacement arm works with the Norton Doors 9300, 1600, 7500, and 8000 series closers. And the Yale 2300, 50, 3000 and 4400 Door Closers

Norton Part # 1620-1 or 7701-1 and Yale 400-1

Norton / Yale Door Closer Parallel Bracket

Replacement arm works with the 1600, 7500, and 8000 series closers.

Norton Part # 1618A
Yale Part # 289A

Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

Replacement arm works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 2300, 3000 and 4400 friction hold open arms closers. Norton and Yale use the same arm for there Friction Hold Open arms.

Norton Part # 7701-3
Old Norton Part # 1620-3
Yale Part # 400-3

Norton / Yale Door Closer Hold Open Parallel Bracket

Replacement bracket works with the Norton 1600, 9300, 7500, and 8000 series, along with the Yale 50, 3000, and 4400 series hold open closers.

Norton Part # 1628H
Yale Part # 588

Norton and Yale Hold Open Loop Assembly

This part is the part that always breaks on the Norton and Yale Friction Hold Open Arms. Cast Iron Construction, powder coated to the desired color.

Norton Part # 7701-13
Old Norton Part # 1620-13
Yale Part # 400-13

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

Norton 7700 Series Power Track Arm

Arm is shipped will all of the necessary hardware. This assembly includes the 7701ST-1AT Adjusting Head and Tube Assembly, and the 7701ST-1AR Adjusting Rod Assembly. The square shaft measures 7/16" x 7/16". The aluminum finish ships within 24 hours, dark bronze will take a little longer.

Norton Part # 7701ST-1A

The Norton 7700PT Arm Stud connects the arm to the slider in the track.  The Stud measures 1" overall length, including the stud head.

The Norton 7700PT Slider measures 2-1/16" long by 1-1/4" wide and 5/8" thick, excluding the metal clip on the back.

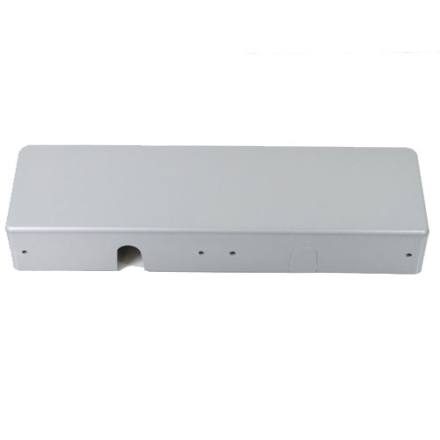

Norton Door Closer Covers

Replacement Norton Door Closer Covers, made of impact resistance plastic.  Covers are available for the 1600, 7500, 8300, and 8500 Series Door Closers.

Norton PT24SOL 24 Volt Solenoid Assembly

If your Norton or Yale PowerTrack Door Closer is not holding the door open, this is usually the problem. To trouble shoot, first make sure you have voltage going to the solenoid. If you have voltage going in, and the door is still closing, then your solenoid is burned out. The solenoid is under constant voltage, so they do not last forever. The assembly measures 6-1/2" long by 1-1/8" wide with a height of 3/4". We sometime find the number F98024SH.1315 24 VDC on the solenoid.

Norton Part # PT24SOL

The Norton PTO PowerTrack for 7705 is a replacement piece for the 7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The Track measures 21-1/4" long with a hole spacing of 19" on centers.   The PTO Track is for the Pull Side of the door, also known as the Hinge Side because you can see the hinges on that side.

Norton Part # PTO24 or PTO120

The Norton PPTO PowerTrack for P7705 is a replacement piece for the P7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The PPTO Track is for the Push Side of the door, also known as the Stop Side because the track mounts on the jamb stop.

Norton Part # PPTO24 or PPTO120

Norton Hook Up Boards for units made after 2009.  Available in 24 or 120 Volts.

Norton 7700/7705PT Hook-Up Boxes come in two voltages, 24 and 120, and two configurations Hinge Side and Stop Side. Hinge Side means the track is on the side of the door that you can see the Hinges, also know as the pull side.   Stop Side means the track is on the push side of the door.

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF
