Security Door Hardware

This Glass Patch is sold in rolls of 18 inches by 120 inches.  It is a polyester film with an adhesive back with "Warning" on it to prevent accidental injury. This is a temporary transparent patch until the Glass can be replaced.

The Barracuda Model DSO is for Out Swinging 36" Doors and provides up to 550 pounds of security.   It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the lever or knob set with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

Barracuda Part # DSO-1 and DSO-2

The Barracuda DSI is designed for In Swinging 36" Doors.  The user places the deive on the floor and slides the metal plates under the door.   Then pushing outward on the handles engages the plates to the exterior door jamb.   Then you simply install the locking pin to barracade the door.   The device is manufactured of heavy-duty steel that is then coated in a durable powder coat paint.   It will work on just about any door and comes in 6 different versions depending on your jamb width.   It is lightweight and comes with a storage mounting rack, along with all the the needed hardware for installation.

Barracuda Part Number
4-3/4"  DSI-2
5-3/4"  DSI-1
6-3/4"  DSI-3
7-3/4"  DSI-4
8-1/4"  DSI-5
8-3/4"  DIS-6

The Barracuda DSO-PB is for use on Out Swinging 36" Doors with Exit Devices.  It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the mounting cleat with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

• Surface Bolt has 1-3/16" throw for maximum security.
• Strong tension springs prevent creep.
• Ideal for all types of doors.
• Available 8"
• Units packed with standard screws for added security.
• Units packed with both a universal top strike (US) and
a mortise bottom strike (MS).
• Constructed of heavy duty steel.

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
  between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
  (ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
  Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
  opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

Single Left Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock just prevents theft.

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock prevents theft.

Need extra brackets for your Secuity Latches, you can order them here.  The are sold individually.  Constructed of welded steel and this then powder coated black.

Double Door Latch for doors without a center post. Shown without optional lock. Lock prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Single Left Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Install A Lock Cylindrical

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color. Available in Stainless Steel, and Polished Brass.

2-1/8" bore x 9" tall x 4-1/4" wide.

Install A Lock Lock And Deadbolt

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color.

2-1/8" holes with 3-5/8" centers

Install A Lock Deadbolt

Repair and reinforce existing doors with this wrap around trim. A great way to repair doors that have been pried or forced open. Select your back set, the distance from the edge of the door to the center of the bore, door thickness, and color.

2-1/8" bore x 4-1/2" tall x 4-1/4" wide.

Detex EAX-500 Door Exit Alarm

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mortise cylinder sold separately
Powered by a 9 volt battery

Detex EAX-500 Installation Instructions

Detex EAX-500W Weatherized Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The Weatherized version of the EAX-500 is designed for out swinging doors that may get wet, or damp environments.

Mortise cylinder sold separately
Powered by a 9 volt battery

Detex EAX-500 Installation Instructions

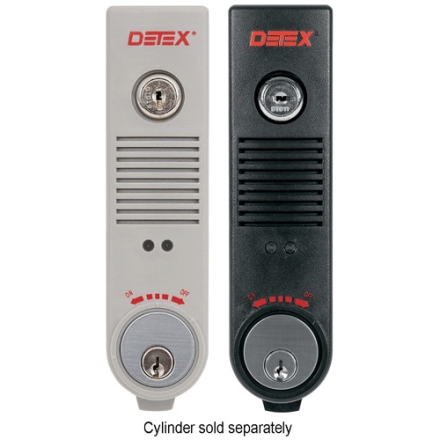

Detex EAX-300 Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Moritse Cylinder is not included
Powered by a 9 Volt Battery

Detex EAX-300 Installation Instructions

Detex EAX-300W Weatherized Door Prop Alarm

The Detex EAX-300W Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.  The Weatherized version is designed for doors that open to the outdoors or environments.

Moritse Cylinder is not included
Powered by a 9 volt battery

Detex EAX-300 Installation Instructions
