Door Pull Handles

Foot Pull

The Foot Pull is a device for public restroom doors that allows one the option of opening the door using their foot instead of their clean hands. The Foot Pull has been installed in thousands of schools, hospitals, restaurants and office buildings across the US and Internationally, and a 99.95% approval rating, the Foot Pull is truly a "why didn't I think of that" idea with a wide open future. The pull measures 8" across by 7" tall with a 3-3/8" projection. The plate is made of die cast alumunum with a distressed finish.
Package Includes:
1 Foot Pull, Instructions, door signs and all
hardware needed for installation.

Handicap Door Pull 19

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Handicap Door Pull 18

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

Handicap Door Pull 119

With this handle you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Finishes

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

The Handicap Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

The Foot Operated Door Pull is a low cost solution to keep your hands off of high traffic handles. It is constructed of cast aluminum, and measures 4" wide by 1-7/32" high with a 2-3/8" projection. The package includes fasteners, door decal and installation tool.

Step N Pull®

Stop the spread of germs with this ingenious product. Simple step on the plate and pull the door without grabbing the door pull.

Includes:

1. One StepNpull®
2. Required mounting screws
3. Two stickers, one for the door and the other for the mirror, paper towel dispenser or hand dryer. Actual dimensions are 5"x4"

Currently we only have Aluminum in stock.
Available in Aluminum, Gold or Copper Finish-See Color under "More Views"

Door Pull 25 With 3/4" Diameter Handle

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter
2-3/8" projection
1-5/8" clearance

Finishes

Door Pull 26 1" Diameter

This door handle is made of 1" round stock in either solid, aluminum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

1" diameter material
2-3/4" projection

Finishes

8" GDP810
10" GDP101
12" GDP121

Door Pull Offset 3/4" Diameter 29

This door handle is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

3/4" diameter material
2-1/2" projection
2-1/2" offset

Finishes

Door Pull Offset 1" Diameter 39

This door handle is made of 1" round stock in either solid, alumunum, brass or stainless steel. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.

1" diameter material
2-3/4" projection
2-3/4" offset

Finishes

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Door Pull Offset 1" Diameter PH-4000

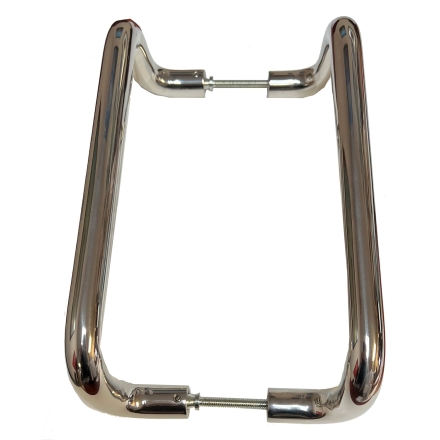

1" Diameter Solid Aluminum Round 3-1/4" Offset Door Pull, usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.

Projection 3 -1/4"
Door Clearance 2 -1/4"
Center To Center 9". 10' and 12"
Anodized Finishes Aluminum or Dark Brown
Mounting Hardware Included

Door Pull 10

This door pull has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Door Pull 11

This door pull has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

Finishes

Door Pull 12

This handle has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Finishes

Door Pull 14

This handle has 5-1/2" centers on the mounting screws. And has a 2" diameter base. It features a 2-1/4" projection with a 1-1/2" clearance. Also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers.

Finishes

Door Pull 15

This door handle features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Finishes

Door Pull 16

This door handle has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Finishes

Door Pull 17

This door handle has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Finishes

Door Pull 21

This handle has a cross section dimension of 1/2" x 1" and is made of half round (underside is round) stock. The handle projects out 2-1/8" with a clearance of 1-5/8". This handle is available in 6" and 8" center to center mounting holes, but can be made in different Center to Center dimensions. This product is also known as a Door Handle or Door Grip. The handle ships with thru bolts and matching finish washers.

Finishes

Door Pull 22

This door pull features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers. The dimensions are shown below.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Door Pull 23

This door pull features an 8" center to center screw dimension. The handle ships with thru bolts and finish washers. Also known as a Door Handle, or Door Grip.

3/8" x 1-1/4" handle cross section
8" centers
14" overall length
1" diameter base
1-7/8" projection

Finishes

Door Pull 24

This door handle features a 5-1/2" center to center screw spacing. It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

1" diameter material
5-1/2" centers
8" overall
3/4" base diameter
2" projection

Finishes

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

Finishes

Door Pull 40

6" x 12" size
10" centers
1-3/8" x 12" base
2-1/4" projection

Finishes

Door Pull 42

4-1/4" x 8-3/4" size
6-3/4" centers
1-3/8" x 8-3/4" base
2-1/4" projection

Finishes

The offset door pull 44 is 5 inches by 12 inches.  It offers a 2 inch clearance with a 2-1/8 inch projection.  The mounting holes are 10 inches on centers.  The base block is 1 inch by 12 inches.

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Finishes

Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

Finishes

The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.
