The Falcon Doromatic Adjustable Mortise STrike STK70 is used on their mullions.  This is the strike that fits in the tear drop shapped mullion. They measure 2-3/8 inches tall by 1-7/16 inches wide and are 1" thick.  They are sold in sets, enough for 1 mullion.

The Doromatic 1490 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

Doromatic EL1490 Exit Device with Electric Latch Retraction

The Doromatic 1490 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

Doromatic EL1590 Rim Exit Device with Electric Latch Retraction

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

Doromatic EL1490 Lift Bracket

As known as a Falcon EL1490 Lift Bracket. This bracket connects the exit device to the rods. The bracket measures 7-1/4" long by 1" wide.

Dor-o-Matic Falcon Part # PB57 or 4270107495

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

Doromatic Exit Device 1490/1590 Dogging Bracket PB222

Dor-o-Matic 1490/1590 Dogging Bracket Assembly. If your exit device is not locking open when the hex key is turned, this is the most likely cause.

Doromatic Part # 4270107046 or PB222

Complete parts break down

Dor-o-Matic 1490/1590 Dogging Clip

Doromatic part # 971659-79 PB223

Complete parts break down

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

Complete parts break down

Doromatic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

Doromatic 1590 Cylinder Assembly 159CA-NL

Doromatic part # 159CA-NL

The Dor-O-Matic 1590 Retractor RTR10 is one of the components you need to convert a Exit Only device to a NL or HB device.  The RTR10 along with the 159CA-NL or 159CA-HB is all you need, along with a Key Cylinder.

Doromatic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Dor-o-Matic 1590 NL Cam Assembly

Doromatic part # 4270107283

Dor-o-Matic 1590 HB Cam Assembly

Doromatic part # 4270107285 or PB118

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Dor-o-Matic 1490 RHR/1590 LHR Push Label
4-7/8" x 1-7/16"

Doromatic part # 4270107321 or PB212 Black
Doromatic part # 4270107320 or PB214 Gold

Complete parts break down

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black
Doromatic part # 4270107322 or PB215 Gold

Complete parts break down

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Doromatic Exit Device 1590 Center Case Cover PB203

Covers the latch bolt assembly on the 1590 Rim Device.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106863 or PB203

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

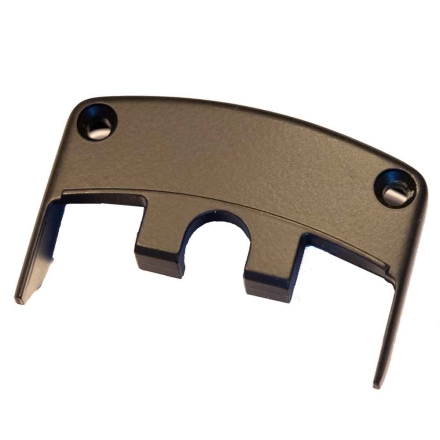

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

Doromatic 1590 Latch Bolt Assembly

Replacement Latch Bolt Assembly for the Falcon Doromatic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603

Dormatic Exit Device Part 1690/1990 Rod Latch Assembly

Doromatic RL Bottom Latch measures 3-1/8" tall by 13/16" wide by 1-1/4" deep. Latch is 1/2" diameter. Also used on the Doromatic Falcon 1490 and EL versions of the 1490 and 1690.

Doromatic part # 4270100521

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Exit Device 1690/1990 Top Rod Latch Assy.

Used on the 1490, 1690 and 1990 Concealed Vertical Rod Devices

Doromatic Part # PB130, and also 4270101806

The Dor-O-Matic Falcon Request to Exit Switch, SWITCH.1006 is for use on the 1690, 1790 and 2390 devices, produced after June 2002.  The Request to Exit Switch allows you to cut the current to various devices when the push bar in depressed.

Installation Instructions

Doromatic EL1490/EL1590 Solenoid

Old Part # Solenoid.142
New Part # 47639877

The Von Duprin 110388 EL Cable Assembly connects directly into your power source and the Potted Circuit Breaker 050534. This 6 foot Cable Assembly is used on Von Duprin and Falcon Exit Devices that have the Electric Latch Retraction.

Von Duprin Part # 110388-00
