Sargent

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

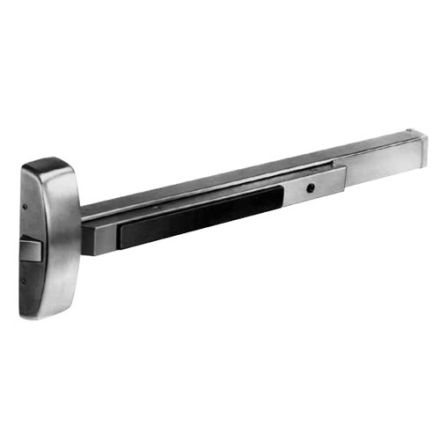

Sargent 3828 Series Exit Device

The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Non-handed

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

Sargent Exit Device Lever Return Spring

This spring is used on Sargent Lever Trims for there Exit Devices.

2-1/8" LONG

Sargent part # 97-0425

Sargent Exit Device Et Spindle Adapter

7/16" diameter x 1-1/2"
input square shaft is 5/16"

Sargent Exit Device 20/30/60 End Cap And Bracket

Includes the end cap, bracket and screws

Used on the Sargent 20, 30 and 60 series Exit Devices

Sargent Part # 68-0434, 68-2141, and 97-0052

Sargent Exit Device 20/30/60 Bracket

Bracket holds exit device on the door, and plastic cover mounts to it.

Sargent part #68-2141

Sargent Exit Device 80 Series Metal End Cap And Bracket

Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

sargent part # 565

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

Sargent Exit Device 8800 Chassis Assembly

Chassis for devices after 2/5/2001. Used on the 8804, 8806, 8810, 8813, 8815, 8840, 8843, 8844, 8846, and 8888 Sargent Exit Hardware Devices.

Sargent Part # 68-4261

Sargent Exit Device 90 Series Mouse Trap Spring

Used on the Sargent 9898 Rim Device on the opposite side of the case as the latch bolt.

Sargent part # 98-2159

7/32" hex key

3-1/4" overall length

Sargent 60/80 Push Bar Pin Retaining Clip

used on Sargent 60 and 80 series to retain the push bar and channel axles. Use with the 68-0229 and 68-0230.

Sargent part # 01-0098

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

Sargent 60/80 Push Bar Pins-Short Pin

Also known as the push bar axle, this is the pin that you see on the push pad.

1-9/16" LONG

Sargent part # 68-0229

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Sargent 20/30/60/80 Connecting Arm Spring

Push Bar Return Spring

Sargent part # 68-0236

Sargent Exit Device 20/60 Plastic End Cap

Plastic end cap for the Sargent 20 and 60 series. The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

Sargent Part # 68-0434

Sargent 20/30/60/80 Dogging Assembly

We only sell the dogging assembly parts as a complete set. This Dogging Assembly Kit is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Exit Devices. This dogging assembly kit has been around since the 1980's.

Sargent part # 68-2596

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7
