Fiat Slide Bolt Latch
Description

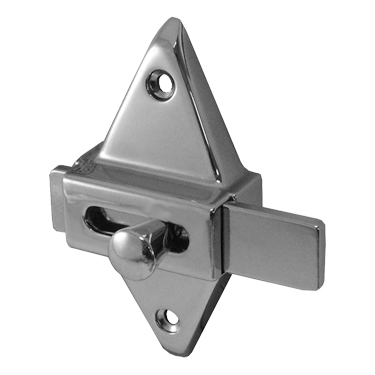

Fiat Partitions Surface Slide Bolt Latch Chrome Plated
Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.
Shipped with mounting screws.
Fiat Partitions Surface Slide Bolt Latch Chrome Plated
Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.
Shipped with mounting screws.
| Part # | 9F0302 |
|---|---|
| Availability | In Stock |
| Manufacturer | Bobrick Toilet Partition, Fiat Toilet Partition |
| Description | Fiat Partitions Surface Slide Bolt Latch Chrome Plated Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020. Shipped with mounting screws. |
| Detailed Description | Fiat Partitions Surface Slide Bolt Latch Chrome Plated Zamac die cast construction, polished chrome finish. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020. Shipped with mounting screws. |
