Global Slide Bolt Latch
Description

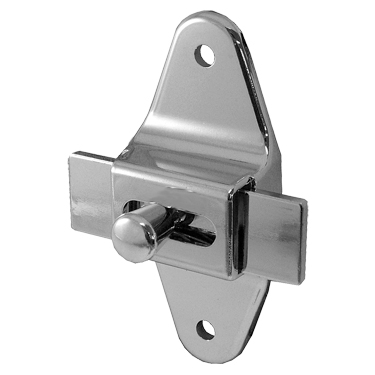

Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated
Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.
Shipped with mounting screws.
Used by accurate and global
Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated
Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050.
Shipped with mounting screws.
Used by accurate and global
| Part # | 9G0136 |
|---|---|
| Availability | In Stock |
| Manufacturer | Global Toilet Partition |
| Description | Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050. Shipped with mounting screws. Used by accurate and global |
| Detailed Description | Global Partitions Surface Mounted Slide Bolt Latch Chrome Plated Zamac die cast construction, polished chrome finish. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5050. Shipped with mounting screws. Used by accurate and global |
