LCN SEM7820 Magnetic Door Holder
Description
LCN SEM7820 Magnetic Door Holder

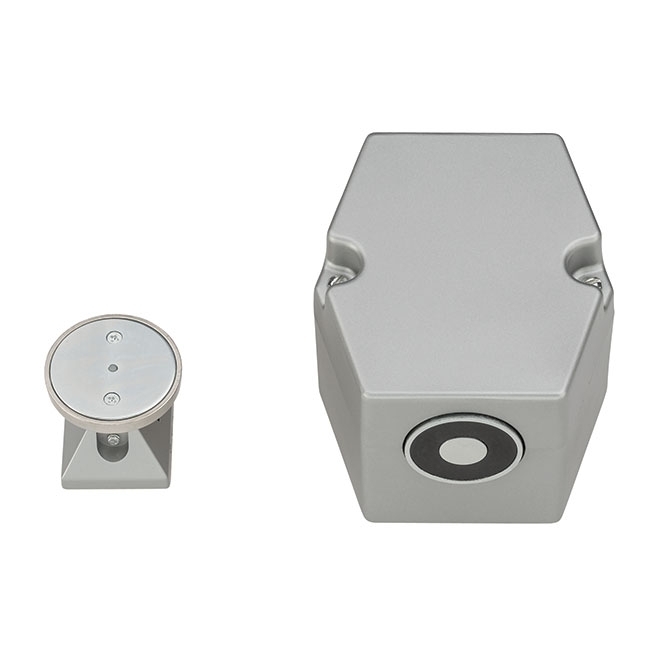

LCN SEM7820 features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.
LCN Part # SEM7820
Armature extensions are available, along with replacement covers, magnets, and armatures.
LCN SEM7820 Magnetic Door Holder
LCN SEM7820 features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.
LCN Part # SEM7820
Armature extensions are available, along with replacement covers, magnets, and armatures.
| Part # | SEM7820- |
|---|---|
| Detailed Description | LCN SEM7820 Magnetic Door Holder LCN SEM7820 features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color. LCN Part # SEM7820 Armature extensions are available, along with replacement covers, magnets, and armatures. |
| Description | LCN SEM7820 Magnetic Door Holder LCN SEM7820 features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color. LCN Part # SEM7820 Armature extensions are available, along with replacement covers, magnets, and armatures. |
| Availability | 1 Week Lead Time |
| Manufacturer | LCN Door Closer |
