Metpar Top Hinge 1-1/4 Sq Edge
Description

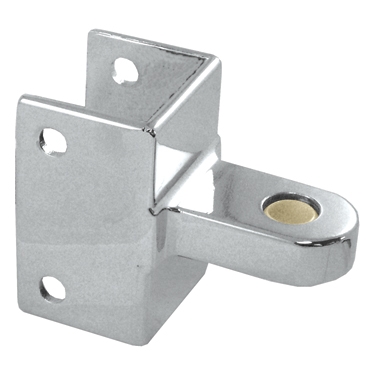

Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.
Shipped with mounting screws.
A=1-9/16"
Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster
Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.
Shipped with mounting screws.
A=1-9/16"
| Part # | 9CP400 |
|---|---|
| Availability | In Stock |
| Manufacturer | Metpar Toilet Partition |
| Description | Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930. Shipped with mounting screws. A=1-9/16" |
| Detailed Description | Metpar Partition Top Hinge For 1-1/4" Square Edge Post Or Pilaster Chrome plated Zamac die cast construction. The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930. Shipped with mounting screws. A=1-9/16" |
