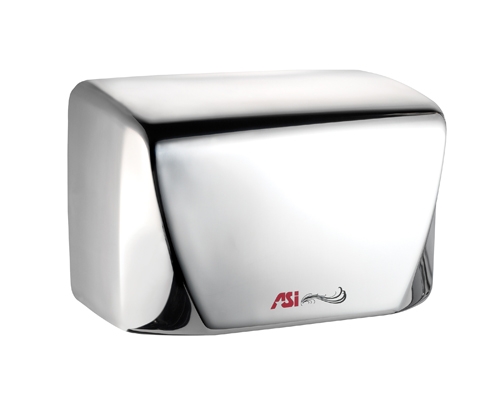

Turbo Dri Jr Surface mounted High Speed Dryer
Description
Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES
- Quick drying — less than 15 seconds
- Operates automatically using infrared sensor
- Auto-resetting thermostat
- 60-second automatic shut off
- Cover fabricated of heavy-duty, one-piece-formed stainless steel
Compact high-speed hand dryer for applications where less space is available. 5-year warranty.
FEATURES:
- Quick drying — less than 15 seconds
- Operates automatically using infrared sensor
- Auto-resetting thermostat
- 60-second automatic shut off
- Cover fabricated of heavy-duty, one-piece-formed stainless steel
Electrical Specifications:
Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings
Voltage:
-
0198-1: 120 VAC, 50/60 Hz. 1.6 kW
-
0198-2: 240 VAC, 50/60 Hz. 1.6 kW
Air Output: 68 CFM max - Temp: 140° F (60° C)
Output Air Speed: 156 mph (229 ft/s) [70 m/s {251 km/h}] - 224 mph (329 ft/s) [100 m/s {361 km/h}]
Heater: 500 Watts
Current: 10.4 Amps @ 120 VAC;
Output Air Speed: 156 mph (229 ft/s) [70 m/s {251 km/h}] - 224 mph (329 ft/s) [100 m/s {361 km/h}]
Heater: 500 Watts
Current: 10.4 Amps @ 120 VAC;
5.2 Amps @ 240 VAC
Dry Time: Under 15 seconds
Dry Time: Under 15 seconds
Sound Pressure
(Decibel Level)
Max: 69.1 dB-A @ 2M
Max: 69.1 dB-A @ 2M
Color Options:
Bright Stainless Steel
Satin Stainless Steel
White
Bright Stainless Steel
Satin Stainless Steel
White
| Part # | 9a0198 |
|---|---|
| Availability | 1 to 2 Days |
| Return Policy | Non-Returnable |
| Manufacturer | American Specialties Inc. |
| Description | Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
|
| Detailed Description | Compact high-speed hand dryer for applications where less space is available. 5-year warranty.
FEATURES:
Electrical Specifications:
Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings
Voltage:
Air Output: 68 CFM max - Temp: 140° F (60° C)
Output Air Speed: 156 mph (229 ft/s) [70 m/s {251 km/h}] - 224 mph (329 ft/s) [100 m/s {361 km/h}] Heater: 500 Watts Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC
Dry Time: Under 15 seconds Sound Pressure(Decibel Level)
Max: 69.1 dB-A @ 2M Color Options:
Bright Stainless Steel Satin Stainless Steel White |
