Von Duprin 98/99 Maintenance Kit

In stock

Part #

G050046
$1,202.88

Description

The Von Duprin 98/99 Maintenance Kit includes all the parts and pieces you need to keep your 98 or 99 device running properly for years.  If you are interested we can email a list of the parts.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

The Von Duprin 98/99 Maintenance Kit includes all the parts and pieces you need to keep your 98 or 99 device running properly for years.  If you are interested we can email a list of the parts.

Von Duprin part # 050046

Here is a list of the Contents:

Quantity

Product name

2

425 SNB PKG-2 US32D

2

325 SNB PKG-2 US32D

4

IMPACT RESIST END CAP BRKT PKG

4

98/9927 ROD GUIDE PKG US32D

2

SA DAMPER ASSY

1

33/35/98/99 E/CAP SCREW PKG

1

VON DUPRIN MAINT. KIT MANUAL

12

264/299F/499F STRIKE SHIM

20

8-32 1/4" UFPH MS STL CZNC

12

10-32 1/4" UFPH MS SS NYL

12

10-24 X 3/4 FPHMS - STL BO

6

WAVE SPRING WASHER SS, .440 ID X .618 OD X .008 THICK, .440

12

10-24 3/4" PPHMS STL CZNC

12

ROLL PIN SPIROL YZNC STL .1/8

24

10-24 1" PPH MS TYP 2A STL YZN

12

#10 EXT TOOTH LOCK WASHER YZNC

12

10-24 X 1 3/8 PPHMS 2A - STEEL

25

TRUARC RET. RING T5304-18 STL

12

10-24 X 3/4 UFPHMS 2A - STEEL

50

8-18 3/8" UFPHMS TYP 25 STL CZ

12

RET RING #5160-42 TRUARC STL

6

1/4-20 5/8" SOC SET STL BO

12

1/4-20 3/4" UFPH MS SS

50

12-14 1/2" HEX WSHR HD TYP AB

20

10-12 X 10-24 X 1 PTHCS - S.S.

10

3347A/9947 RATCHET LEVER SPRIN

10

BOLT RETURN SPRING YZNC

4

CYLINDER RETAINING CUP-210/990

4

ROD EXTENSION CONNECTOR

4

EXT ROD DRILL TEMP.-2227/9927

10

9927 AUX. BOLT SPRING YZNC

12

299 STRIKE SHIM

4

299 STRIKE PLATE

12

NL DRIVE SCREW-99 DEVICE - STL

6

33/99 ANTI-RATTLE SPRING

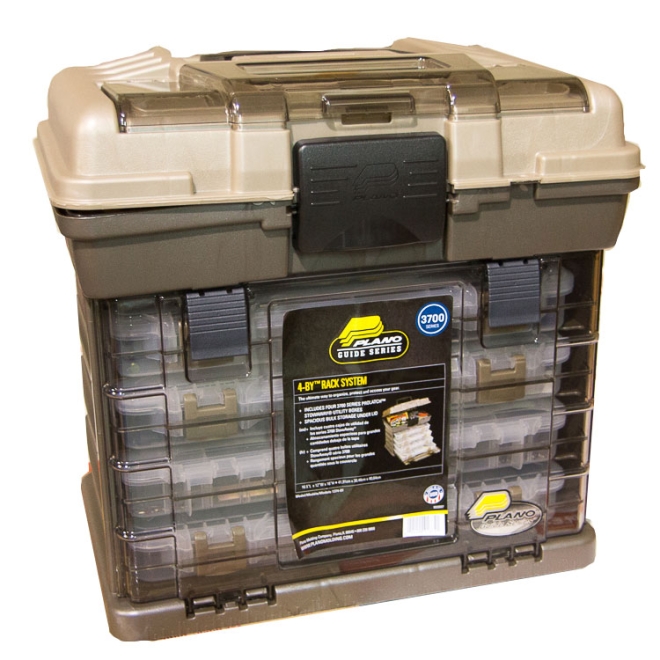

1

TACKLE BOX

12

3347A/9947 COMPRESSION SPRING

30

TAILPIECE GUIDE

12

992 HEX STUD YZNC

2

HEX DOGGING SHAFT YZNC

2

DOGGING SPRING BO-WAXED

2

DOGGING ADAPTOR SPRING

2

CD ACTUATOR YZNC

24

992 LIFT SPRING

25

SHEAR PIN BD

12

994 HEX STUD YZNC

2

CD DOGGING PLUG YZNC

20

PUSHBAR GUIDE

4

MECHANISM END CAP BRKT YZNC

12

WS SLIC-PIN
